Overview

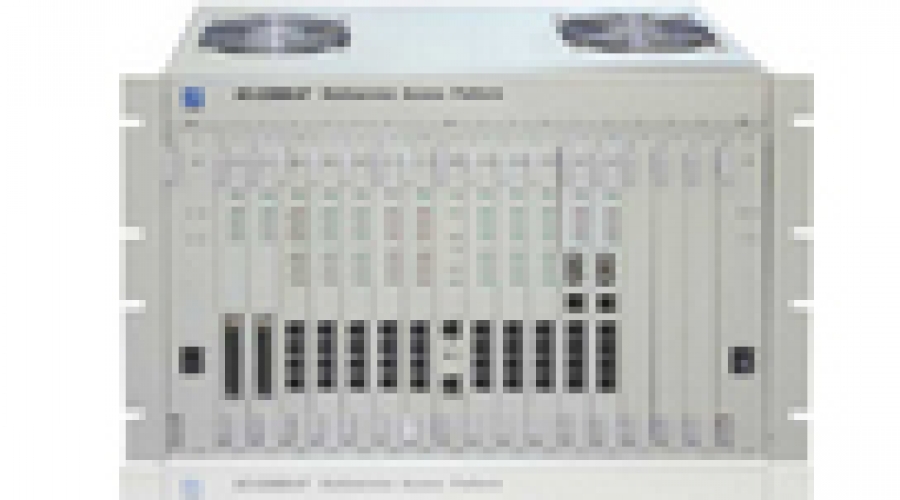

Being a large capacity multi-service access platform and with a chassis of 7U, HC-DM3600 can support 15 function cards, 2 power supply cards (1 redundant module) and one management card. There are two kinds of management card: MCU card and MCUS1 card. The MCU card provide 2048×2048 cross-connect matrix. While the MCUS1 card which offer one STM-1 optical port as uplink can provide 4096×4096 cross-connect matrix. And HC-DM3600 support the management of all the plugged-in cards and the remote devices by the management card through NM software--- HCView.
HC-DM3600 supports many kinds of TDM-based service, such as E1, V35, FXO, FXS, G.SHDSL, Etherent, etc.
Features
Two kinds of management cards:
MCU card: Provide 2048×2048 non-blocking cross-connect matrix. One NM port for management and one CONSOLE port.
MCUS1 card: Provide 4096×4096 non-blocking cross-connect matrix. One 155M (STM-1) optical port for uplink, two framed E1 ports, one NM port for management and one CONSOLE port.
Capacity:
(MCU) 2048×2048 non-blocking cross-connect matrix.
(MCU) Maximum number of E1 ports: 60
(MCUS1) 4096×4096 non-blocking cross-connect matrix
(MCUS1) Maximum number of E1 ports: 128
Service provided:
SDH155M Optical port (MCUS1): provide SDH STM-1 uplink
PDH Optical port: Primary, Secondary, Tertiary Group interface
E1 interface
Etherent interface: 10Base-T/100Base-Tx
G.SHDSL interface
V.35 interface
V.24 synchronous / asynchronous interface
G.703 codirectional interface
FXS interface
FXO interface
2/4 wire E&M interface
Redundancy:
Provide power supply 1+1 redundancy (-48V DC)
Upgrade:
Upgraded on line by the NMS
Network management:
Management protocol : SNMP
NMS: HCView
Power Requirement:
DC: -48V (-36~-72V DC)
Supports the protection of the positive and negative terminals, it will not work if connecting in the wrong way
Environment:
Operating temperature: 0°C ～+40°C
Store temperature:-20°C ～+70°C
Relative humidity: 5%～90% no coagulation
Cards support:
Cards | Description |
PWR | DC-DC power supply module, supports 1+1 redundancy |
MCU | Main control unit, with a 2048×2048 cross-connect matrix and SNMP agent |
MCUS1 | Main control unit, with a 4096×4096 cross-connect matrix, one SDH (STM-1) optical port, 2 E1, one NM port and one CONSOLE port |
V35 | 4-port nx64Kbps V.35 data card, provides 4 high speed synchronous data channels |
V24A16 | 16-port RS-232 low speed async channels, support channel data rates up to 38.4Kbps |
E1-4 | 4-port E1 interface card, supports online BERT , local loop back and remote loop back |
NB-4 | 4-port nx64Kbps data card, provides 4 ports 10/100M Ethernet bridge |
E1NB4 | 4-port E1 and 4-port Ethernet cards, Ethernet port provide bypass data channel from E1 link |
DSL-4 | 4-port G.SHDSL card to extend the range of E1 over 2-wire cable up to 4Km (24 AWG). |
EM-8 | 8-port analog voice channel card, supports 2-wire , 4-wire E&M or 4-wire lease line |
FXS16 | 16-port PCM voice card with FXS interfaces |
FXO16 | 16-port PCM voice card with FXO interfaces |
E8T | 1-port 155M optical multiplexer card, provides 100M Ethernet port and 8 E1 ports |
OPT | 4-port optical card, enables DM3600 to concatenate with 8 Mbps fiber |
GCO8 | 8-port codirectional G.703 card, provides 8×64Kbps data channels |
