    HC-OE120-V35

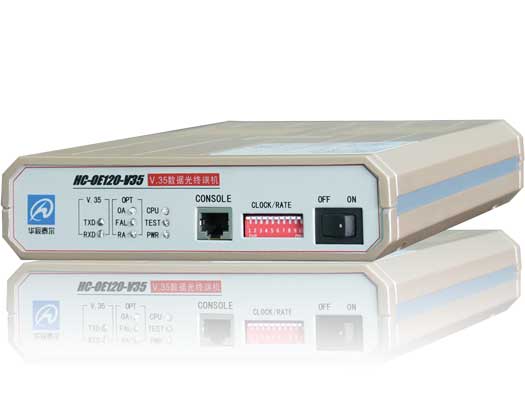

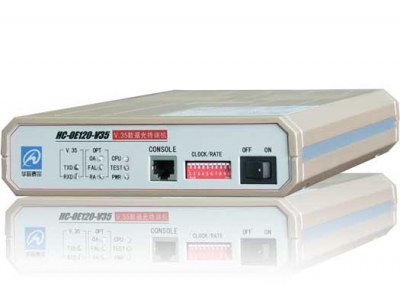

    HC-OE120-V35 The HC-OE120-V.35 is a fiber media transmission device for V.35. It provides both AC and DC power supply.For the V.35 port, it provides DB25 connector.For the optical port, it can pr

    1. Detailed information

    HC-OE120-V35

    The HC-OE120-V.35 is a fiber media transmission device for V.35. It provides both AC and DC power supply.

    For the V.35 port, it provides DB25 connector.

    For the optical port, it can provide multi-mode or single-mode optical transceivers. Using  different optical transceivers, the data can be transmitted from 20Km up to 120Km.



    Feature

    Little plastic case, card type for 4U rack

    Provide V.35 interface

    Optical rate: 16.896Mbps

    Transmission distance: 20~120Km

    Loop configuration by DIP switch or CLI

    Clock and rate configuration by DIP switch or CLI

    ALS function in optical port

    Power supply: Both 220V AC and 48V DC-



    Specification

    Optical port:

    Line code: 1B1H

    Line Data rate: 16.896 Mbps

    Transmission power: > -10dBm (LD)

    Receive sensitivity: < -38dBm (Pe=1 x 10-10)

    Connector: FC/SC can be selected by user

    Optical module: five types can be selected by user
    A, 850 nm with multimode double fiber
    B, 1310 nm with multimode double fiber
    C, 1310 nm with single mode double fiber
    D, 1550 nm with single mode double fiber
    E, Single fiber



    V.35 interface:
    Interface type: DCE
    Data rate: N×64Kbps (N=1~32)
    Connector: DB25/F

    Transmit clock: Internal, V.35 port, optical line user-selectable


    Console port:

    RS232 console port for an ASCII terminal

    Date format: 960bps, 8-bit data, 1-bit stop flag

    Function: software upgrade, loop configuration, status monitoring

    Connector: RJ45



    Power supply:

    Both -48V (-36 to -72V) and 220V (165~265V)

    Power Interface: DC power terminal/AC socket

    Power Consumption: < 5W (standalone),<4W(card )



    Environment:

    Operating temperature: 0°C +40°C

    Storage temperature:-20°C~+70°C

    Relative humidity: 5%90% no coagulation



    Dimension:

    Dimension: 175(W)×44(H)×200(D)mm





    Optical connector

    Transmit Distance

    V.35 connector

    Power Supply

    Remark

    HC-OE120-V.35

    SC

    20Km

    DB25

    220V AC


    FC

    40Km

    -48V DC

    ST

    80KM

    Both 220V and -48V


    120Km
