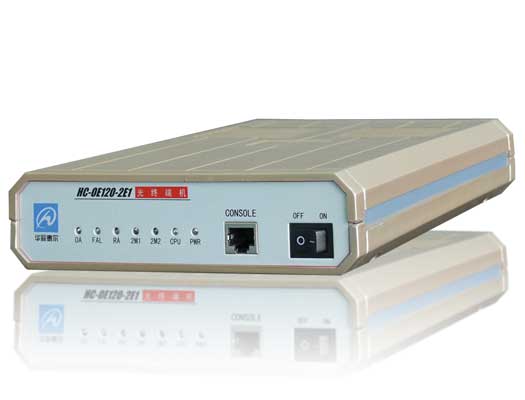

HC-OE120-2E1

HC-OE120-2E1

Overview

The HC-OE120-2E1 and the HC-OE120-E1 are fiber media transmission modems for 2 × E1/1×E1. Both AC and DC power supply are provided.

For the E1 port, there are two types of connector. The BNC type provides unbalanced 75Ω coaxial connections while the RJ45 type provides balanced 120Ω connections over twisted pair wiring.

For the optical port, it can provide multi-mode or single-mode optical transceivers. Using different optical transceivers, the data can be transmitted from 20Km up to 120Km.

Feature

Little plastic case, card type for 4U rack

Provide 1 E1 / 2 E1 interface

Optical rate: 16.896Mbps

Transmission distance: 20~120Km

ALS function in optical port

Power supply: Both 220V AC and -48V DC

Specification

Optical port:

Line code: 1B1H

Line Data rate: 16.896 Mbps

Optical emit power: > -10dBm (LD)

Receive sensitivity: < -36dBm (Pe=1 x 10^-10)

Connector: FC/SC optional

Optical module: five types can be selected by user
A, 850 nm with multimode double fiber
B, 1310 nm with multimode double fiber
C, 1310 nm with single mode double fiber
D, 1550 nm with single mode double fiber
E, Single fiber

E1 interface:

Comply with ITU-T G.703

Data rate: 2048Kbps ± 50oppm

Line Code: HDB3

Impedance: 75Ω unbalance / 120Ω balance user-selectable by DIP switch

Connector: BNC for unbalance / RJ45 for balance

Console port:

RS232 console port for an ASCII terminal

Date format: 960bps, 8-bit data, 1-bit stop flag

Function: software upgrade, loop configuration, status monitoring

Connector: RJ45

Power supply:

Both 220V AC and -48V DC

Power interface: DC power terminal/AC socket

Power dissipation: <5W (box type devices), <4W (card type device)

Environment:

Operating temperature: 0°C～+40°C

Storage temperature:-20°C～+70°C

Relative humidity: 5%～90% no coagulation

Dimension:

Dimension: 175(W)×44(H)×200(D)（mm）
