    HC-ICE10-8E1

     HC-ICE10-8E1 Interface ConverterOverviewHC-ICE10-8E1 is a high performance and self-learning converter for connecting fast Ethernet LANs over multiple bonded E1/G.703 circuits. It can transmit d

    1. Detailed information

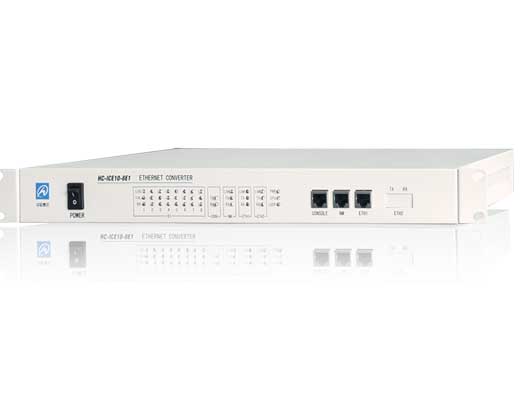

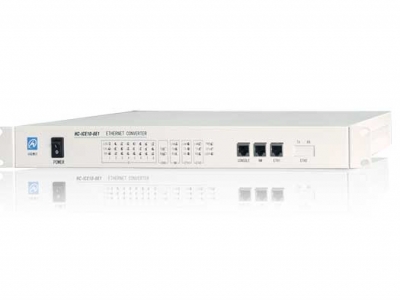

     HC-ICE10-8E1 Interface Converter

    Overview

    HC-ICE10-8E1 is a high performance and self-learning converter for connecting fast Ethernet LANs over multiple bonded E1/G.703 circuits. It can transmit data through 1 to 8 E1 path. Ideally, when there are some E1 paths break down, HC-ICE10-8E1 can still work normally. It applies to video transmission, LAN connection, TV conference, Internet connection, etc.

    HC-ICE10-8E1 has two kinds of type, the card and the box. Generally the cards are inserted in our 6U rack at the center side. They can be managed by the management software HCView at the center office.



    Features

    IEEE 802.3, 802.3u, 802.1Q completely compatible

    Provide a 10/100M Ethernet port

    Provide 8 E1 WAN interfaces.

    Automatic MAC table learning and aging

    Supports Ethernet data frame up to 1536 bytes

    Filter and forwarding rate: 24,000pps

    256 frame buffer

    10000 MAC address table

    Transmission protocol: HDLC

    WAN bandwidth: (1~8) x 2M

    Support auto MDI/MDIX function

    CLI management supported

    Support E1 loop back

    Both AC and DC power supply



    Specification

    E1 interface:

    Framed E1 port, comply with ITU-T G.703, G.704

    Number of port: 8

    Code: HDB3

    Rate: 2048Kbps±50ppm

    Impedance: 75Ω unbalance / 120Ω balance optional

    Connector: BNC for unbalance / RJ45 for balance



    Ethernet Interface:

    IEEE802.3 completely compatible

    Interface type: 10/100M

    MAC (LAN) table size: 10,000

    Buffer size: 256 frame

    Forwarding rate: 15,000pps

    Compress type: enhanced tinygram

    Connector: RJ45



    Console port:

    RS232 console port for an ASCII terminal

    Date format: 9600bps, 8-bit data, 1-bit stop flag

    Function: software upgrade, loop configuration, status monitoring

    Connector: RJ45



    Others

    Power supply: AC (165~265V), DC (-36~-72V)

    Power dissipation: < 8W (standalone), < 7W (card)

    Dimension: 19 inch, I U


    Environment:

    Operating temperature: 5℃+45℃

    Store temperature:-20℃70℃

    Relative humidity: 5%90% no coagulation



    Ordering Information


    Ethernet connector

    E1 connector

    Power Supply

    Remark

    HC-ICE10-8E1

    RJ45

    RJ45

    Both 220V and -48V


    BNC







    HC-ICE10-5E1

    RJ45

    RJ45

    Both 220V and -48V


    BNC







    HC-ICE10-2E1

    RJ45

    Both RJ45 and BNC

    Both 220V and -48V

    Little plastic case
