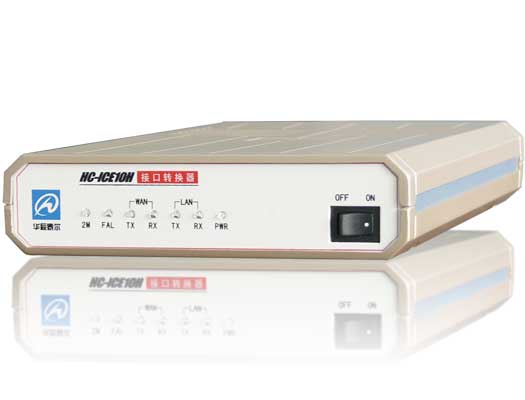

    HC-ICE10H

    HC-ICE10H OverviewHC-ICE10H Ethernet to E1/G.703 interface converter is a high performance, remote, self-learning Ethernet bridge. Its compact size and low cost make it ideal for cost-sensitive b

    1. Detailed information

    HC-ICE10H



    Overview

    HC-ICE10H Ethernet to E1/G.703 interface converter is a high performance, remote, self-learning Ethernet bridge. Its compact size and low cost make it ideal for cost-sensitive bridging applications.

    HC-ICE10H has two kinds of type, the card and the box. Generally the cards are inserted in our 4U rack at the center side. They can be managed by the management software HCView at the center office.



    Features

    IEEE 802.3, 802.3u completely compatible

    Buit-in 1000 frames buffer

    Full/Half Duplex Mode compatible

    Support the IEEE 802.3x flow control

    Support the MDIX/MDI function

    Support long Ethernet frame up to 1536byte, support the VLAN of the IEEE 802.1Q

    Automatic MAC table learning and aging

    Forwarding rate: 300pps

    WAN protocol: HDLC

    In-hand Ecc channel allows to be managed remotelg



    Specification

    The E1 interface:

    Comply with ITU-T G.703, G.704

    Data Rate: 2048Kbps ± 50ppm

    Code Type: HDB3

    Impedance: 75Ω unbalance / 120Ω balance user-selectable by DIP switch

    Connector: BNC for unbalance / RJ45 for balance



    Ethernet interface:

    IEEE802.3, 802.3u completely compatible

    Interface type: 10/100M

    MAC (LAN) table size: 10,000

    Buffer size: 256 frame

    Forwarding rate: 3000pps

    Compress type: enhanced tinygram

    Connector: RJ45



    Others

    Dimension: 175(W) × 44(H) × 200(D) (mm)

    Power supply: Both 220V AC(165~240 V) and -48V DC-36-72V


    Enviroment:

    Power consume: < 5 W (standalone <4W (card)

    Operating temperature: 5℃+45℃

    Store temperature:-20℃70℃

    Relative humidity: 5%90% no coagulation



    Ordering Information


    Ethernet connector

    E1 connector

    Power Supply

    Remark

    HC-ICE10H

    RJ45

    Both BNC and RJ45

    Both 220V and -48V
