HC-ICE03

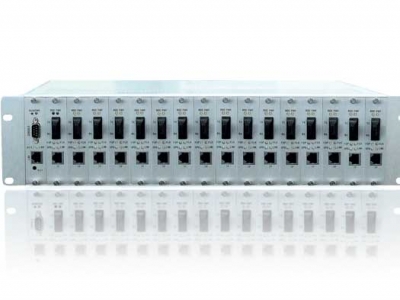

HC-ICE03 Media Converter Chassis

Overview

The HC-ICE03 is a standard 19”, 2.5U/1U and 16/4 slots mountable rack for media converter. It supports up to 16/4 standalone converter cards of 10/100M Ethernet to 100Base-Fx with network management.

Features

19” , 2.5U/1U mountable rack up to 16/4 converter cards

Set 10/100M, half-duplex/full-duplex and loop-back test by HCView management or CLI

Status monitoring by HCView management or CLI

Converter cards hot pluggable supported

User-friendly GUI of HCView for ICE03

The same converter cards for 2.5U and 1U equipment

Power supply 1+1 redundancy

Remote converter can be managed through in-band ECC channel

Specification

Console port:

Support CLI

RS232 console port for an ASCII terminal

Data format: 9600bps, 8-bit data, 1-bit stop flag.

Function: configuration, status monitoring.

Connector: DB9

NM interface:

10Base-T port, can be used for SNMP management by HCView

Power supply:

AC (165~265v), DC (-36~-72V)

Power dissipation: < 200W (1U), < 60W(2.5U)

Environment:

Operating Temperature: 0℃~+50℃

Store Temperature: -20℃~+70℃

Relative humidity: 5%~90% no coagulation
