HC-DM3640

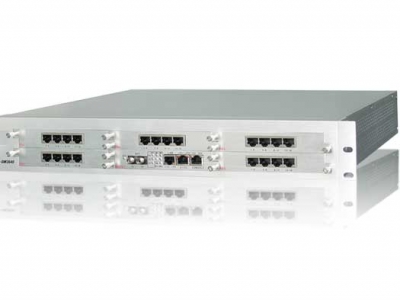

HC-DM3640  6 slots 1.5U chassis

Overview

HC-DM3640 can support 5 function cards, 2 fixed power supply card (1 redundant module) and one management card. It can offer 512×512 non-blocking cross-connect matrix. HC-DM3640 can manage all the cards inside and devices which connect to the platform at the remote side by the NM software--- HCView.

HC-DM3640 supports Huachentel all series devices, such as, Optical Transmission Series, Media Convertor Series, Digital Cross-connect Device Series, Interface Convertor Series, Voice and other products’ card type.

Features

Capacity:

512×512 non-blocking Cross-Connect Matrix

Maximum number of E1 ports: 5

Service provided:

Ethernet interface

E1 interface

V.35 interface

V.24 synchronous serial data interface

V.24 asynchronous serial data interface

FXS voice subscriber interface

FXO voice simulated trunk interface

2/4 line E&M interface

2/4 line lease line interface

G.703 64Kbps data interface

Redundancy

Provide power supply 1+1 redundancy

Network management

Management protocol: SNMP

NMS: HCView for DM3610

Power Requirement:

DC: -48V (-36~-72V DC)

AC: 220V

Environment:

Operating temperature: 0°C ～+40°C

Store temperature: -20°C ～+70°C

Relative humidity: 5%～90% no coagulation

Offer four kinds of management cards:

PCM card

MCU card

MCUR card

MCUO card
