    HC-DM3620

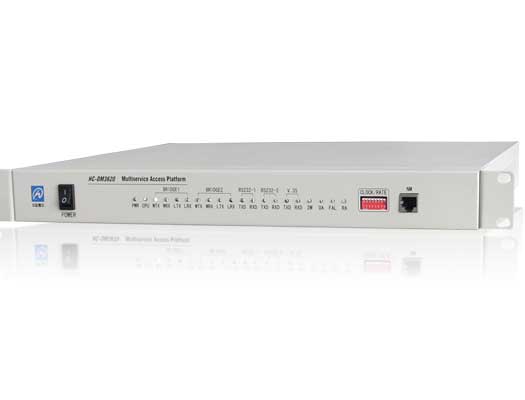

    HC-DM3620 OverviewHC-DM3620 provides full solution for non-blocking cross-connect and multiplexing, it offers 2 x Asynchronous serial port + 1 x V.35/V.24 + 2 x LAN+8 x Voice channels access over

    1. Detailed information

    HC-DM3620



    Overview

    HC-DM3620 provides full solution for non-blocking cross-connect and multiplexing, it offers 2 x Asynchronous serial port + 1 x V.35/V.24 + 2 x LAN+8 x Voice channels access over fiber or E1 (fiber or cable). Its merits include easy installation and debugging, reliable and steady performance, low power dissipation and high integration. It can be configured by CLI through NM port on the front-panel from the local PC. It also can be managed through In-band ECC channel by HCView NM software from remote PC.



    Feature

    256 x256 non-blocking cross-connect matrix

    E1 uplink or fiber uplink user-selectable

    When use fiber uplink, the E1 can also be as service, transmit transparently

    Services supported: FXS, FXO, E1, V35, V24, RS-232

    2 Ethernet ports, physically separated to ensure the transmission safely

    CLI management supported for configuration and status monitoring

    Can be remotely managed by HCView through inband ECC channel

    Diagnostic capabilities including local and remote loop back and online BER test



    Specification

    E1 port:

    Uplink(framed) or downlink(transparent) port

    Number of Ports: 1

    Comply with ITU-T G.703/G.704

    Date rate: 2048Kbps

    Line Code: HDB3

    Impedance: 75Ω unbalanced/120Ω balanced user-selectable

    Connector: BNC for 75Ω unbalanced/RJ45 for 120Ω balanced



    Optical port :

    Line code: 1B1H

    Line date rate: 33.792Mbps

    Transmission power: > -14dBm(LD)

    Receive sensitivity: < -37dBm ( Pe=1 x 10-10)

    Connector: FC/SC optional



    Serial data port:

    Number of Ports: 1

    Data Rate: Synchronous N x 64 kbps data transmission (= 1~31)

    Electrical Interface Types Optional: V.35 or V.24

    Connectors: 25-pin D-type female connector



    Asynchronous serial port:

    Number of Ports: 2

    Comply with ITU-T V.24 and IEEE RS-232C

    Asynchronous

    Rate: 300bps~38.4Kbps self-adaptive rate

    Connector: RJ45



    LAN interface:

    Number of Ports: 2

    IEEE 802.3, IEEE 802.3u completely compatible

    Support 10/100M, half-duplex/full-duolex auto negotiation

    Support auto MDI/MDIX

    Transmission bandwidth: N x 64 kbps (= 1~31)

    Transmit mode: built-in Ethernet bridge

    Connector: RJ45



    FXS/FXO:

    Number of Ports: 8

    Code: ITU_T G.711

    Connector: RJ11/RJ45



    Console port:

    RS232 console port for an ASCII terminal

    Data format: 9600bps, 8-bitdata, 1-bit stop flag

    Function: software upgrade, configuration, status monitoring

    Connector: RJ45



    Others

    Dimension: 19” 1U

    Power supply: -48V DC (-36 ~ -72V)/220V AC Optional

    Power Dissipation: < 10W



    Environment

    Operating temperature: 5+45

    Store temperature:-20+70

    Relative humidity: 5%90% no coagulation



    Ordering Information




    Up Link

    Serial data port

    Asynchronous serial port

    Ethernet connector

    Voice port

    E1 connector

    Power Supply

    Remark

    HC-DM3620

    E1

    V.35 with DB25 connector

    RJ45

    RJ45

    RJ45

    BNC and RJ45

    220V AC


    Optical

    V.24 with DB25 connector

    -48V DC
