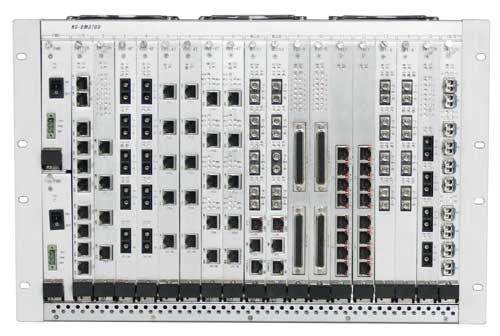

HC-DM3700 20 slots 7U chassisOverview Being the Multi-Service Access Platform HC-DM3700 chassis design with high flexible and versatile, it has powerful modules with various interfaces, can
HC-DM3700 20 slots 7U chassis
Overview
Being the Multi-Service Access Platform HC-DM3700 chassis design with high flexible and versatile, it has powerful modules with various interfaces, can working with various remote standalone equipment, such as SDH, PDH Multiplexer, Interface Converter, Media Converter, and so on. HC-DM3700 can support 16 function cards, 2 power supply card (1 for redundant) and 2 MCU card. Provide 504×504 cross-connect matrix based on the VC12 (2048K) granularity. And HC-DM3700 support the management of all the plugged-in cards and the remote devices by the management card through NM software--- HCView.
HC-DM3700 has 2 MCU card which provide management and aggregation function. These two cards can both act as uplink cards, and can also be backup for each other. They can provide 2 to 8 STM-1 interface for aggregation. Each function slot supports upto 63E1, this is designed for the upgrade in the future. Now the HC-DM3700 can offer 126 E1 ports, or 64 PDH ports or 64 Etherent ports. For the Ethernet service, GFP, VCG and LCAS technology is used. Besides, there is also a timeslot function card which support cross-connect based on the 64K granularity in the card itself HC-DM3700 is a good aggregation equipment in last mile to carriers.
Feature
High integration, can provide upto 16 tributary units.
Provide 126 E1 or 64 PDH links or 64 Ethernet links.
1+1 card protection of MCU unit.
1+1 port protection of MCU unit itselfy
1+1 power supply
Provide 2 to 8 STM-1 uplink interfaces to realize seamless link with the SDH
Each function slots support upto 63×E1
Each card has their power supply separately
Each E1 can has different clock source
Etherent interface support GFP, VCG and LCAS
Timeslot cards support the cross-connect on 64K granularity, when plug into function slot the capability is 512×512;
while plug into MCU slot the capability is 4096×4096
Ethernet aggregation card can do the Ethernet affregation from differet cards to one Ethernet port
Clock resource can select line clock, external clock or free oscillation.
Clock support both 2MHz and 2Mbit
Cross-connection capability is 504×504 VC12.
Network management support SNMP, CLI and Telnet
Network management interfaces which provide ITU-T proposal five functions included configuration, alarm, performance, maintenance and security.
Card | Port No. | Description |
PWR | 2 | -48V DC power supply card |
MCU | 4 | Main card, provide upto 4 electricl or optical STM-1 port. One NM port (RJ45, 10/100Base-T), support SNMP, Telnet. One RS232 console port, support CLI. One ETS port, provide 2 clock source input and output, support 3 kinds of clock source 2MHz, 2Mbit and 1.5Mbit |
E1-8 | 8 | Provide 8 E1 ports |
E1-16 | 16 | Provide 16 E1 ports |
MCUS1 | 4/2 | Function card, provide 4 optical STM-1 port, can be configed as two pairs with 1+1 protection |
MCUS4 | 4/2 | Function card, provide 4 optical STM-4 port, can be configed as two pairs with 1+1 protection |
MCUS0 | 4/2 | Function card, provide 4 optical STM-0 port, can be configed as two pairs with 1+1 protection |
OPT-4 | 4/2 | Function card, provide 4 optical PDH port, can be configed as two pairs with 1+1 protection |
EOS4/8 | 4/8 | Provide upto 4 isolated 10/100Base-Tx Ethernet ports, and all the Etherent can aggregate to the Switch card through backplane board. |
ICE8E1 | 2/1 | Provide 8 E1 port and 1 Ethernet port, Ethernet port can convert to 8E1, and also can aggregate to backplan board. |
V35-8 | 8 | Provide 8 V35 ports |
64k | / | Timeslots cross-connect card based on the 64k granularity, with 512×512 or 1024×1024 matrix |
Switch Card | 1 | Switch card, can aggregate all the Ethernet to one Ethernet port from other function card through backplane board, can be only plugged in to 1/S or 16/S slot |
